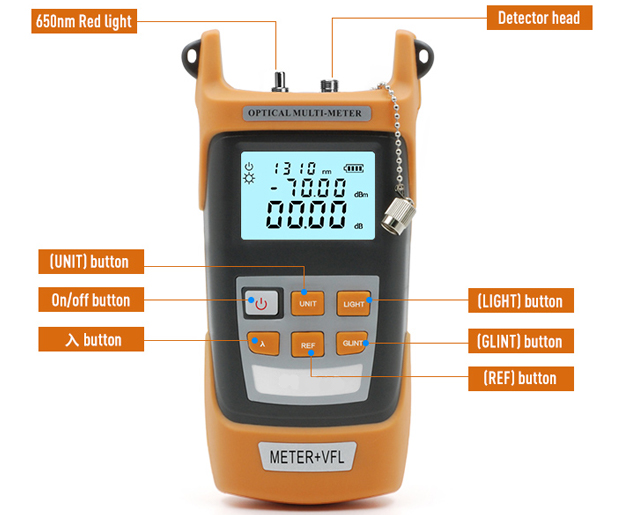

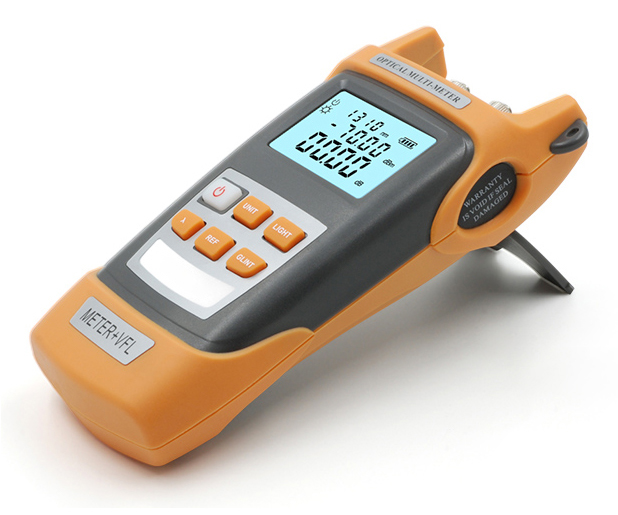

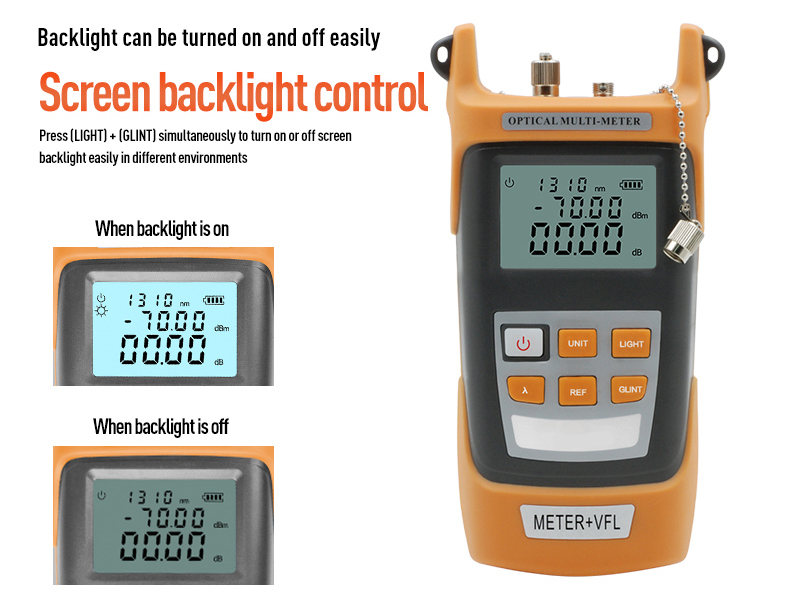

UltraLAN Fiber Power Meter with VFL
The UltraLAN optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for optical fiber winding or breakage fault finding. The power meter features a wide range of laser frequencies, making it a great tool for testing any fiber network. The highly accurate power meter is invaluable when implementing PON networks to insure devices such as ONT/ONU's are receiving the correct power levels within the specified limit for a PON fiber setup.
Main Features:

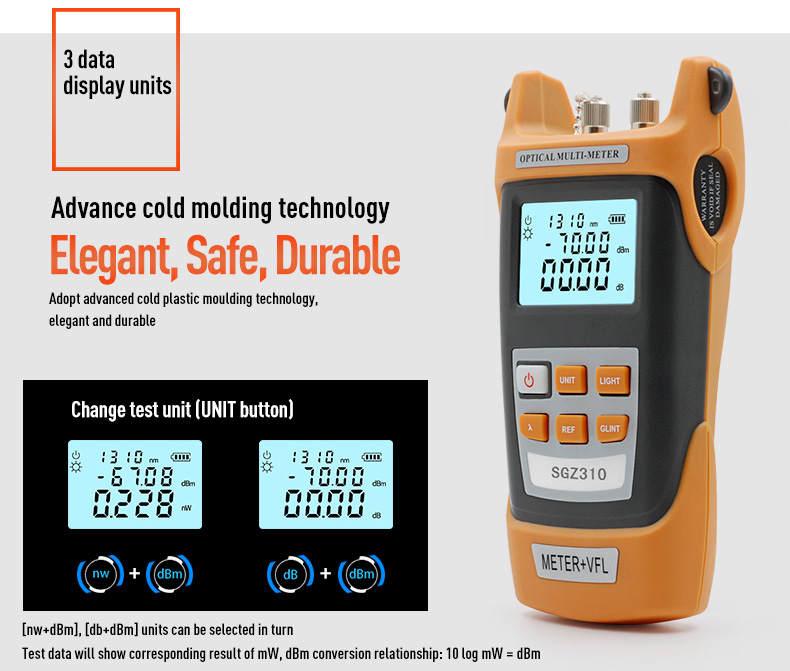

- Measurement of the power of optical sender (dBm and W).
- Insertion loss test of optical devices.

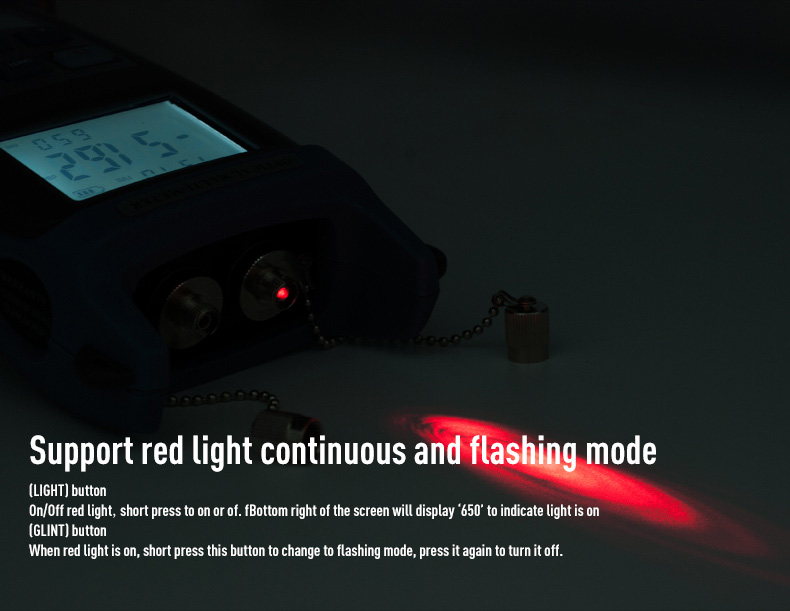

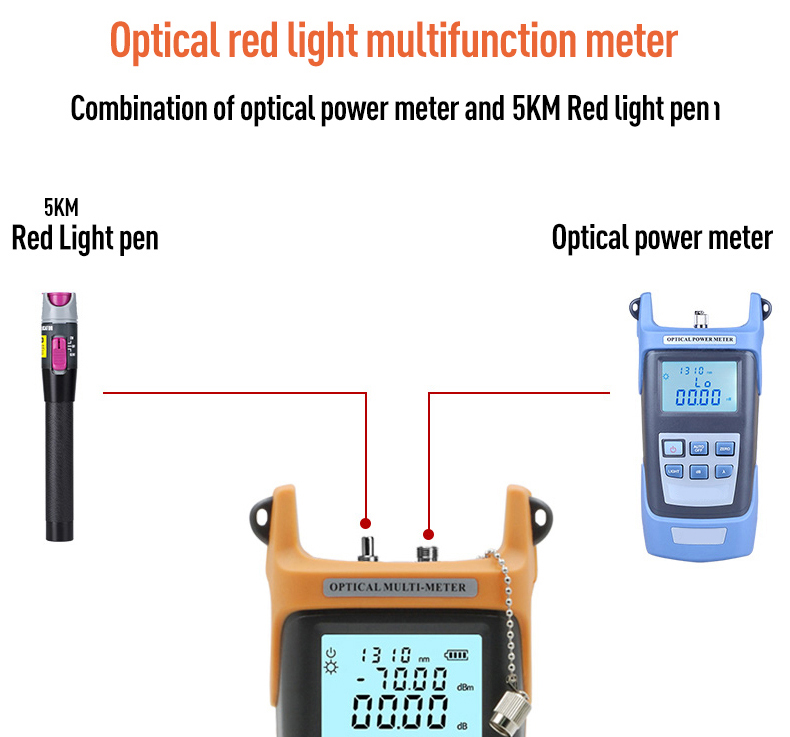

- Check fiber breakage, winding, etc. with the Visual Fault Locator

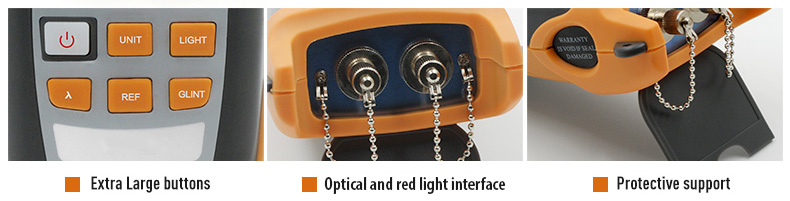

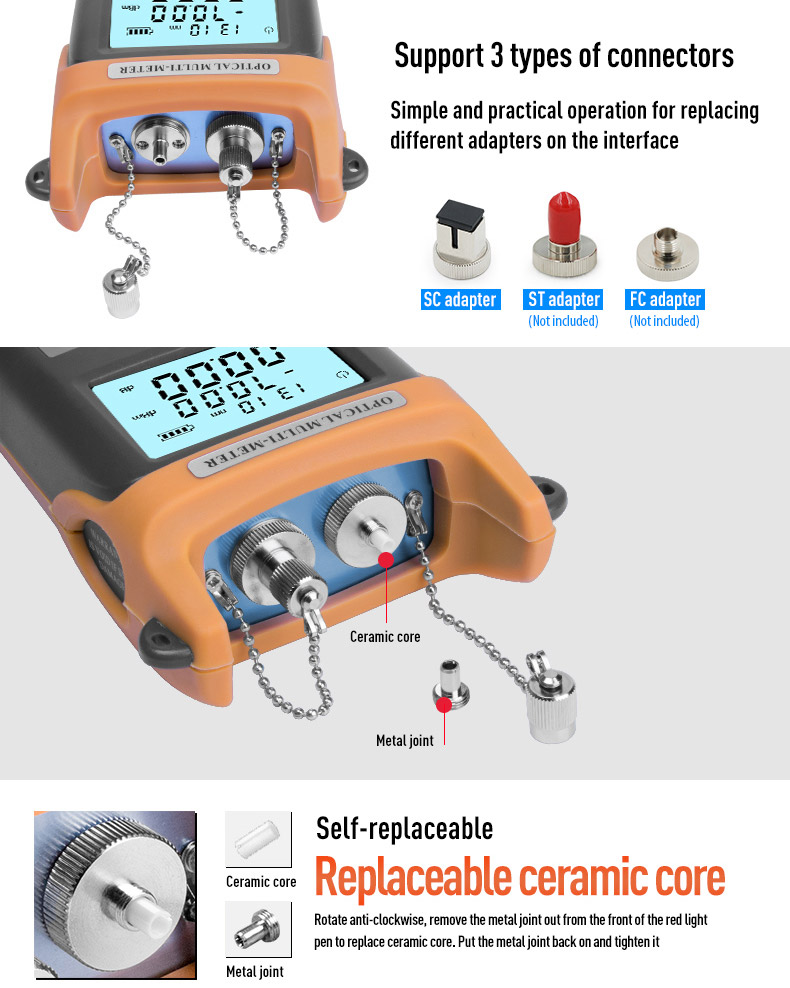

- FC, SC, ST, LC switchable (FC is included originally)

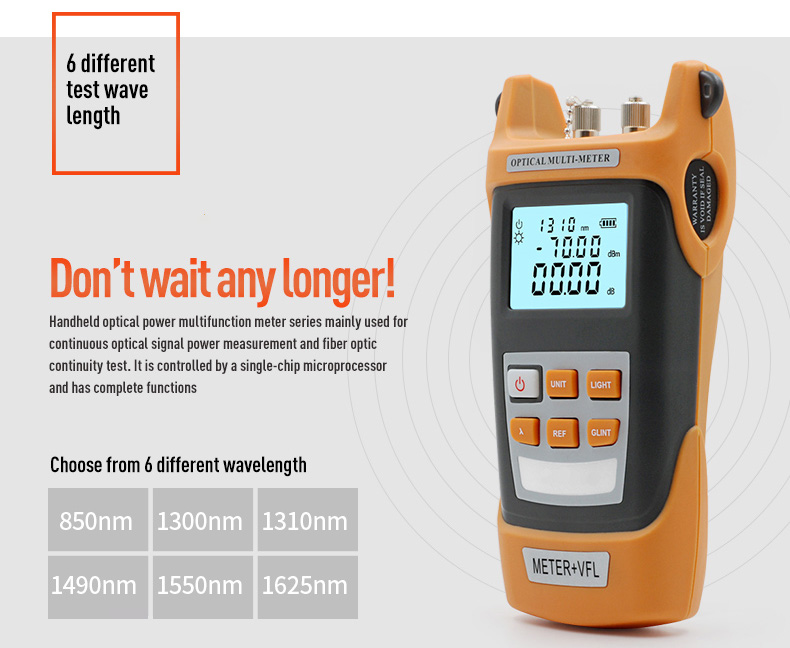

- 6 Wavelength: 850 / 1300 / 1310 / 1490 / 1550 / 1625nm (power meter)
- Wavelength: 650nm ( visual fault locator)
Specifications:
| Power detecting range(dBm) | -70~+3 |
| Probe | InGaAs |
| Detection limit | ∮1.0mm |
| Standard wavelength | 850,980,1300, 1310, 1490, 1550, 1625nm |
| Display resolution | 0.01dBm |
| Emitting Energy | 15km |
| Standard wavelength (VFL) | 650±10nm |
| Working temp | -20 ~ +70℃ |
| Power supply | AA*3pcs |
