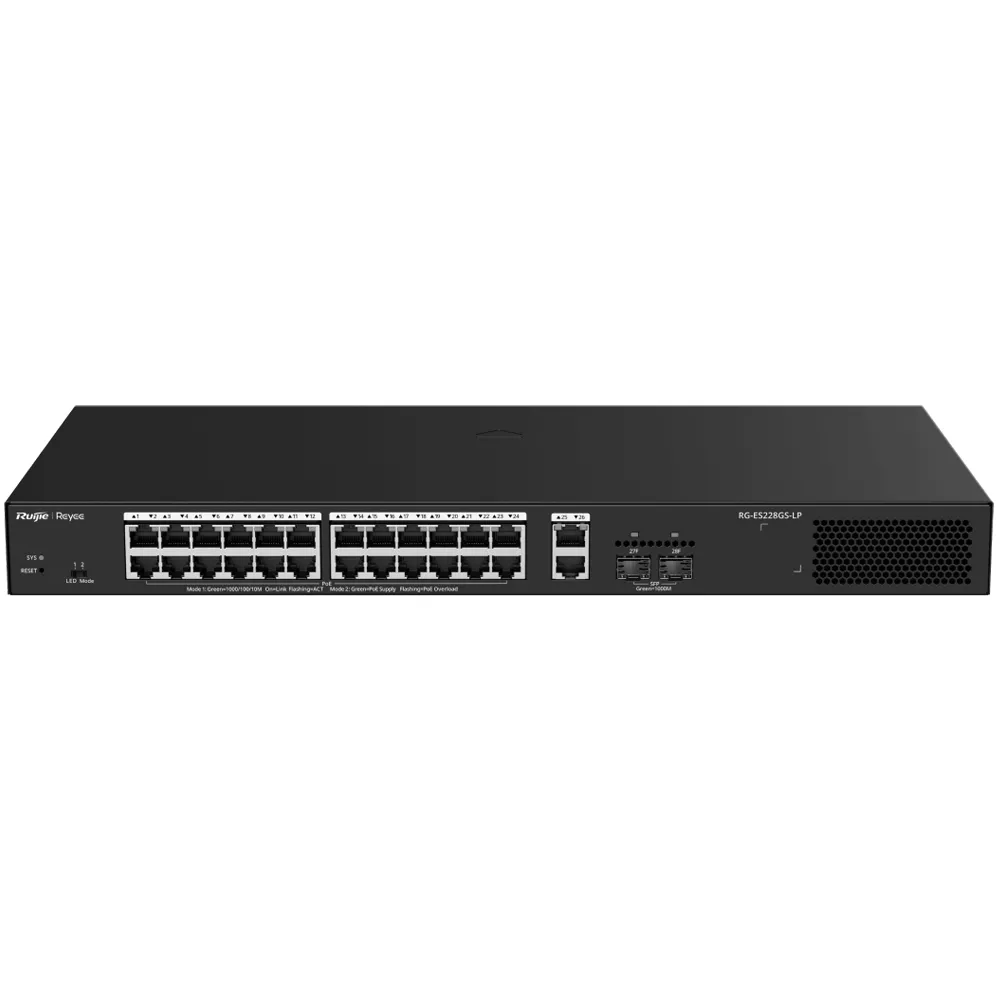

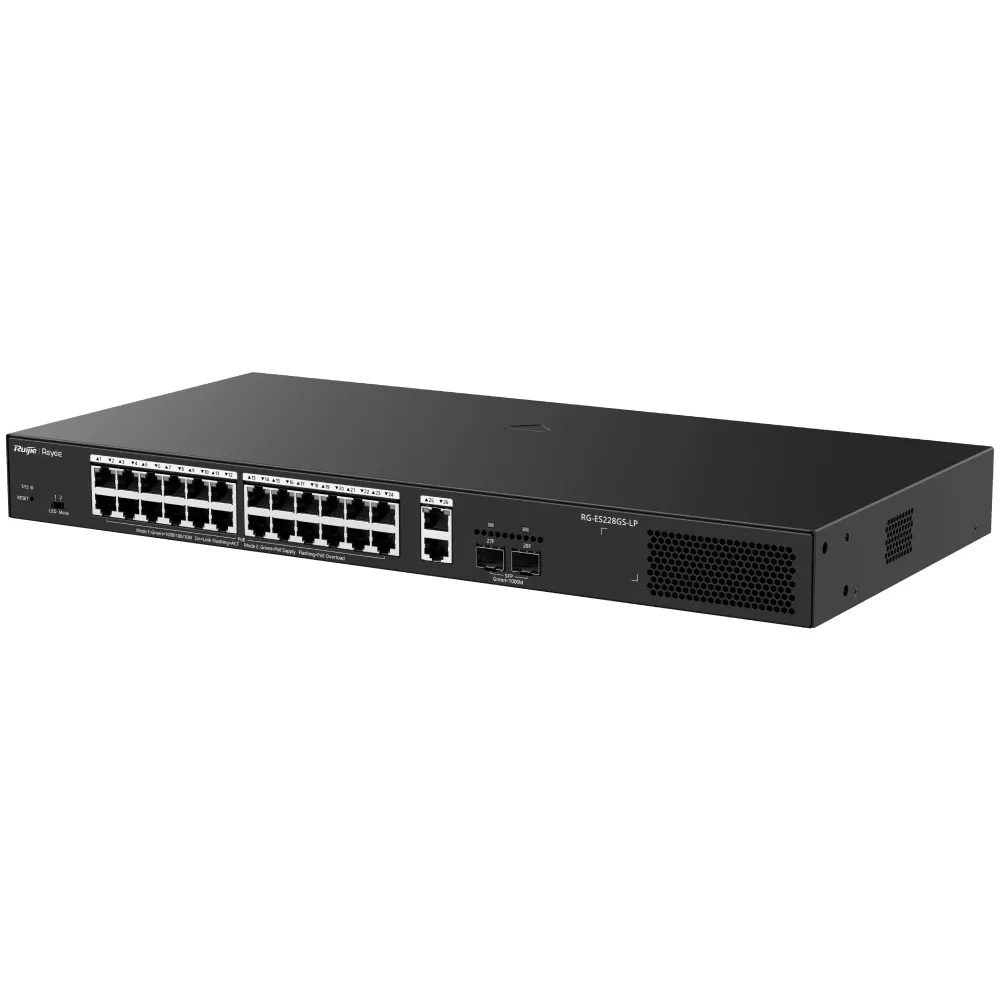

Reyee 28-Port Gigabit Smart Cloud Managed 250W PoE Switch

RG-ES228GS-LP | 24 x 10/100/1000 Mbps PoE+ ports, 2 x Gigabit RJ45 uplinks, 2 x Gigabit SFP uplinks, 250W PoE budget, Ruijie Cloud managed, 1U rack-mount

The RG-ES228GS-LP is a 1U rack-mount smart PoE switch designed for IP surveillance, SMB networks, and wireless AP deployments. It combines 24 Gigabit PoE+ access ports with a flexible 4-port uplink configuration (2 x RJ45 + 2 x SFP) for resilient backhaul.

Intelligent PoE for CCTV & APs
Every access port supports IEEE 802.3af/at and can deliver up to 30W per port, drawing from a total system PoE budget of 250W. A dedicated CCTV mode extends PoE reach up to 250 metres over Cat6 cable at 10 Mbps - useful when cameras are positioned beyond the standard 100 m Ethernet limit.

Cloud-Based Management
Management is flexible: local web GUI, Reyee App, or remote configuration through Ruijie Cloud. VLAN, QoS, loop detection, storm control, port isolation, and PoE scheduling/reboot are all available with no licensing fees.

Reliability & Protection
4 kV lightning surge protection on every port safeguards the switch in environments with outdoor-run cable. The fanless-friendly chassis has a low noise profile and is suitable for office and light commercial spaces.

Ideal Applications
IP camera networks, SMB office wiring, school campuses, and hospitality deployments where a simple, cloud-friendly PoE switch is needed.
