Meanwell 24V 6.25A (150W) Switching PSU - New LRS Range
The new Meanwell LRS range of power supplies exploits a streamlined circuitry design that lowers the electrical component count, while still providing a higher efficiency rate in comparison to it's predecessors - all in a smaller form factor.
Suitable to provide power to large scale projects (such as Ubiquiti AirMAX or MikroTik products that support 24V) where multiple devices can be powered from one source.
These power supplies can also be used to connect into single or multi-port PoE injectors, ideal for network/WISP towers where space is at a premium.
Product Features:
- Ultra compact and 1U low profile (30mm) design
- Withstand 300VAC surge input for 5 seconds
- Ultra low no load power consumption<0.2~0.75W (wattage-corresponding)
- Highest efficiency up to 91.5%
- Working temperature：-30~+70°C
- Withstand 5G vibration test
- Operating altitude up to 5000 meters
- Complete protections：Over temperature / Short circuit / Overload / Over voltage
- LED indicator for power on

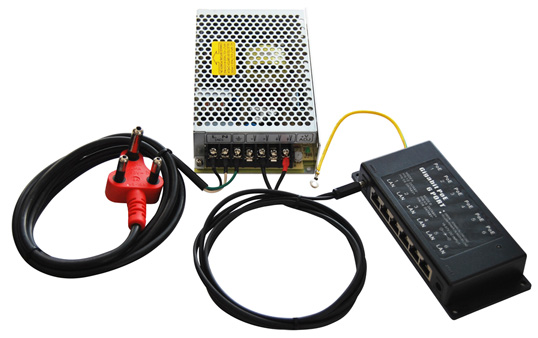

Example usage image:
